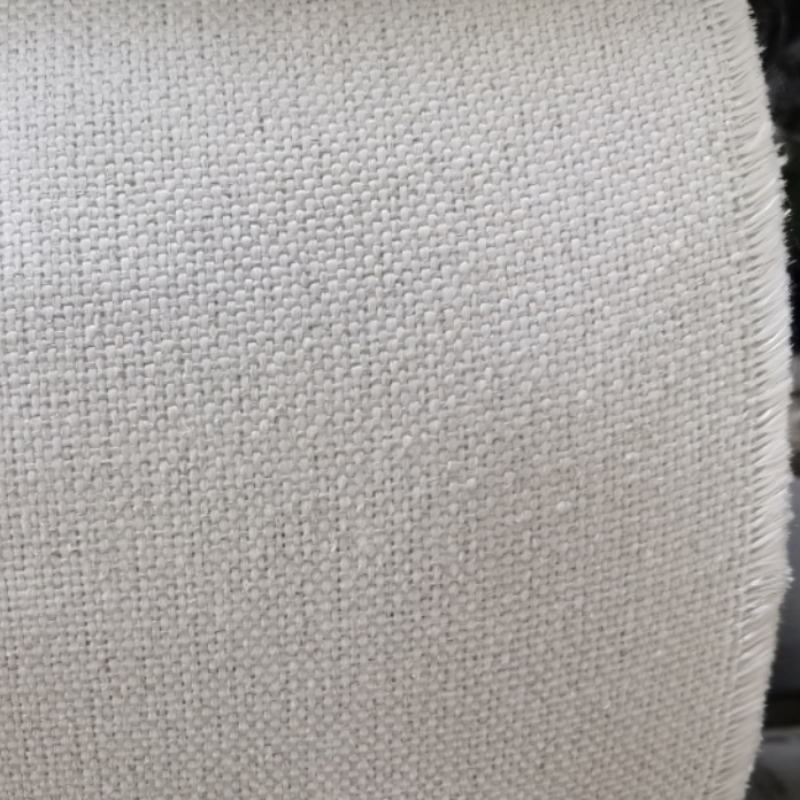

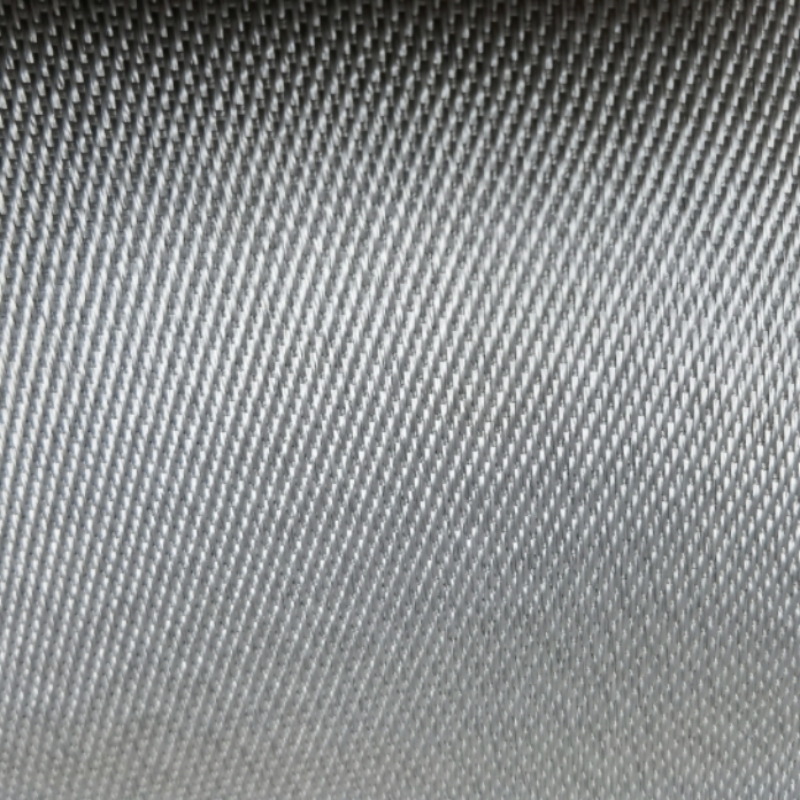

Steel Wire Glass Fiber Cloth

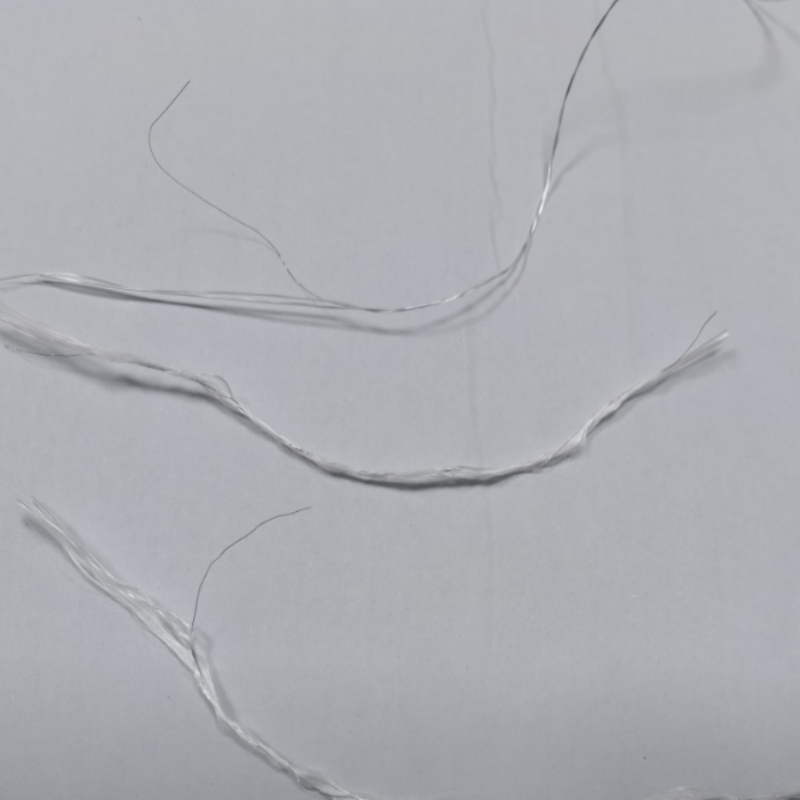

Steel Wire Glass Fiber Cloth has all the advantages of ordinary glass fiber cloth, and also has its unique excellent properties of high strength, low shrinkage and no deformation.  The strengthening with the food grade S.S wire significantly improves the tensile power. Weave can be one-directional (stainless is only inserted in warp yarn) or two-directional (stainless is inserted in both warp yarn and weft yarn)

It will not burn and will withstand constant high-temperature exposure. 550 ºC/1000ºF; most oils and alkalis are resistant and most bleaches and solvents are untouched. It is an optimal substitute for products made from asbestos.

It is widely used in steel, electric power, metallurgy, chemical industry, environmental protection, cement and other industries. Mainly used in the pipeline compensator, friction brake (gasket) substrate of exhaust, ventilation, ventilation, smoke and waste gas treatment systems; boiler insulation, pipeline wrapping, etc.

In order to satisfy unique requests, it could be used for all kinds of thermal insulation and heat safety, as well as the fundamental cloth for finish treatment, coatings and Laminations


Properties:

  • High Tensile Strength
  • High heat resistance
  • High Dimensional Stability
  • Fire resistance
  • Good thermal conductivity
  • Good chemical resistance
  • High durability
  • Good filtration performance



Applications:

  • Insulation pads, insulation covers
  • High-temperature gaskets seals
  • Fire curtains, smoke curtain, fire covers, fire jackets
  • Furnace curtains, fire barrier shields,
  • Sound and heat protection
  • Automotive exhaust covers,
  • Basic cloth for coatings and laminations
  • Welding Blanket And Fire Blanket
  • Fabric expansion joint, expansion joint pillows,
  • Engine system protection, oven doors, process doors
Specifications


Product name

Style No.

Thickness (mm)

Wire type

Weave type

Yarn type

Temp. resistance
550ºC

Color

Length per roll

Packing details

Other Information

Stainless steel wire reinforced fiberglass fabric

wrf450

0.45

304

twill

Filament Yarn

White or Tan (after heat treatment)

Custom

Bag+carton+pallet or plywood box or custom

Custom weave, heat treatment and various coatings available

wrf480

0.5

304

twill

wrf500

0.5

304

plain

wrf640

0.45

316L

satin

wrf650

0.65

316

satin

wrf700

0.7

304

satin

wrf960

0.8

316L

satin

wrf1100

1

316

plain

wrt2025

0.75

316

plain

Textured Yarn

wrt24

0.8

304

plain

wrt27

1.2

304

plain

wrt30

1.5

304

plain

wrt35-1

1.2

316

plain

wrt35-2

1.5

304

plain
