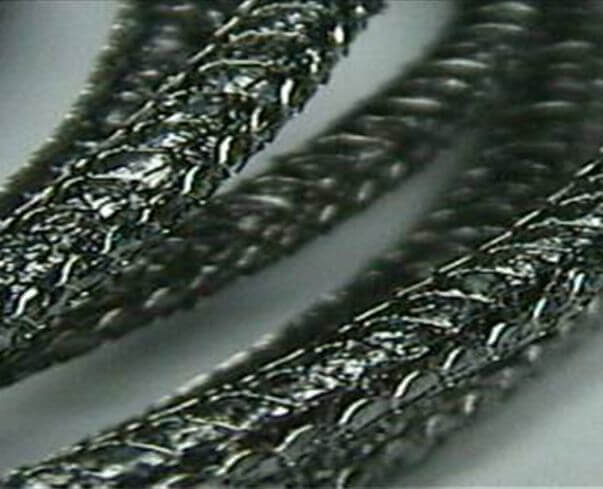

Jacketed Graphite Packing braided from graphite yarns with metal alloy and glass fiber casing like the socks outside. Used in any steam valves applications.
Typical Application
>It is the ideal choice for high pressure, high temperature steam valves service.
Prime Features
>Highest pressure, and temperature
>Good thermal and chemical resistance and high elasticity.
Technical Data
Material
100% Expanded Graphite Yarn and Metal Socks
Temperature Range
-200 up to +555℃ atmosphere;
Process
Valves
55 Mpa
PH
0~14
Density
1.75 g/cm3
-200 up to +850℃ in Steam
