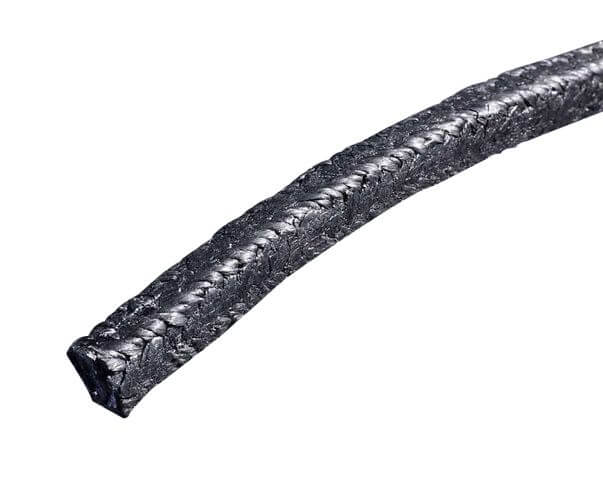

Graphite Packing with Carbon Fiber Corners

Graphite packing with carbon fiber corners is a multi-fiber packing,braided from expanded graphite yarns and carbon fibers, the diagonally braided from graphite yarn, reinforced in all four corners with carbon fibers.
The corners and body make the packing three times more resistant to extrusion and increase the pressure handing capabilities compared to traditional graphite packings.


There are multi inconel wires reinforced to create the packing with increased extrusion resistance capability.

Typical Application
>It can be used in many demanding applications, both dynamic and static
>Particularly suited for high temperature and high pressure service in valves, pumps, expansion joints, mixers and agitators of pulp and paper, power station and chemical plant etc.

Prime Features
>More resistant to extrusion
>Increase the pressure handing capabilities.


Technical Data

Material

100% Expanded Graphite Yarn

Temperature Range

-200 up to +555 atmosphere

-200 up to +650 in Steam

Process

Rotating

3 Mpa

Reciprocating

10 Mpa

Valves

28 Mpa

Shaft Speed

18m/s in rotary

PH

0~14

Density

1.5 g/cm3
