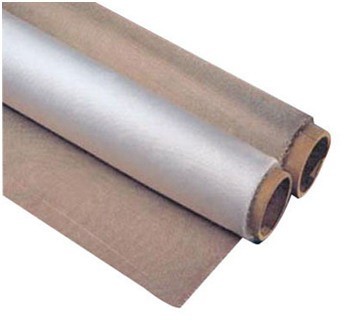

High silica fabric

Silica fabric is a high performance fiberglass fabric which contains more than 96% SiO2, it features excellent heat resistance and can withstand continuous temperatures of1,000C.deg for long periods of time, and up to1,650C.deg for limited periods.

The fabric is primarily used in hot work such as welding and burning operations and also useful for thermal and electrical insulation in stress relieving. It is available in a wide variety of fabricated forms including curtains, seals, pads, cloth and hemmed blankets.

Our Preshrunk versions of high silica fabric are identified by its White color, which is used in applications where shrinkage cannot be tolerated.

And our Standard(none-preshrunk) silica fabrics are Tan color.

The fabrics can also be treated by PTFE to enhance abrasion resistance.

Specifications:

Style

Thickness
(mm)

Width
(cm)

Weight
(g/m2)

Breaking strength
(N/25x100mm)

Thread count
( ends/cm )

Weave

Warp

Weft

Warp

Weft

SF100

0.1

82

87

70

50

17.5

17.5

Plain

SF260

0.26

82

240

290

190

14

14

Plain

SF600

0.65

92-Tan/86,123

580

1200

1000

19.5

17

Satin 8HS

SF760

0.76

92-Tan/86

680

1500

1200

17.5

14.5

Satin 8HS

SF1300

1.3

92-Tan/86,

153-Tan/135

1250

2000

1300

19

12.5

Satin 12HS

Application:

--Used for high temperature protection,thermal insulation.

--Welding/cutting/grinding, molten metal splash protection.

--Heat and flame shielding, stress relief ,electrical insulation.

--House and cable protection and emergency fire blankets.

--Expansion joints and sealing industry.
