Fiberglass fabric and various Coatings


Fibreglass fabrichas been widely used as good materials for electrical insulation, thermalplastic reinforcement and heat insulation, due to their outstanding physical properties, such as high tensile strength, low moisture absorption, good heat-resistance and chemical resistance, and diamentional stability. Fibreglass fabrics will find more applications in combination with rubber, thermalplastic coatings, films and foils of metal.

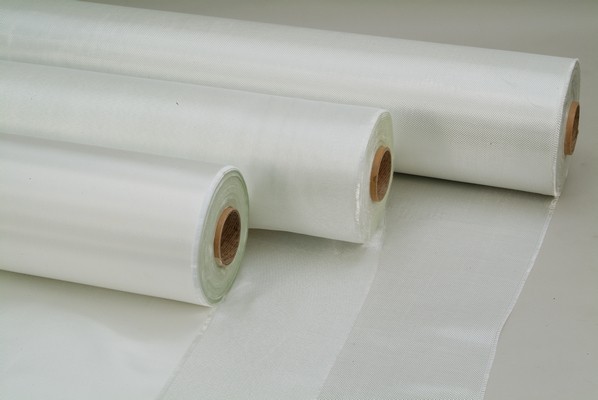

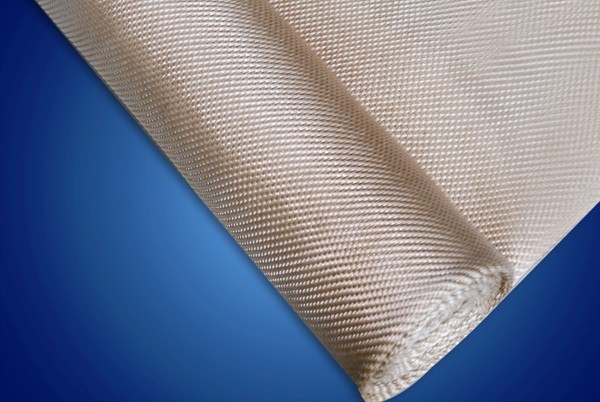

Non-texturized fiberglass fabric---550C.deg



Made of non-texturized yarns, these fabrics appear smooth and have higher weight than the texturized ones. They can be produced by different kinds of weaving---plain, twill, satin ans so on. They are widely used in thermal insulation and can be treated in different ways in order to meet specif

Applications:

--Welding/ fire-protection and heat insulation

--Used for compensators

--Basic cloth for coatings and laminations

--High temperature electrical insulation


Non-texturized Fiberglass Fabric Specifications:

Style

Weave

Warp

Weft

Warp yarn

Weft yarn

Weight

Thickness

Strength

ends/in

ends/in

oz/yd2

in

ibf/in

ibf/in

3788

12HS

46

35

ECG 37 1/4

ECG 37 1/4

52.0

0.0669

1500

1300

3784

8HS

46

35

ECG 37 1/2

ECG 37 1/2

26.4

0.0315

900

800

3786

12HS

42

35

ECG 37 1/4

ECG 37 1/2

38.2

0.0551

1400

600

3734

Twill

35

30

ECG 37 1/2

ECG 37 1/2

17.6

0.0216

500

400

3732 / 332

Crowfoot

48

32

ECG 37 1/0

ECG 37 1/0

12.6

0.0134

550

400

FW600

Double Plain

37

37

ECG 75 1/3

ECG 75 1/3

17.6

0.0228

600

550

7628

Plain/

Twill

44

32

ECG 75 1/0

ECG 75 1/0

6.17

0.0071

250

200

2116

Plain

60

58

ECE225 1/0

ECE225 1/0

3.08

0.0037

125

120

P.S:oz/yd2= 34g/m2, inch=25.4mm

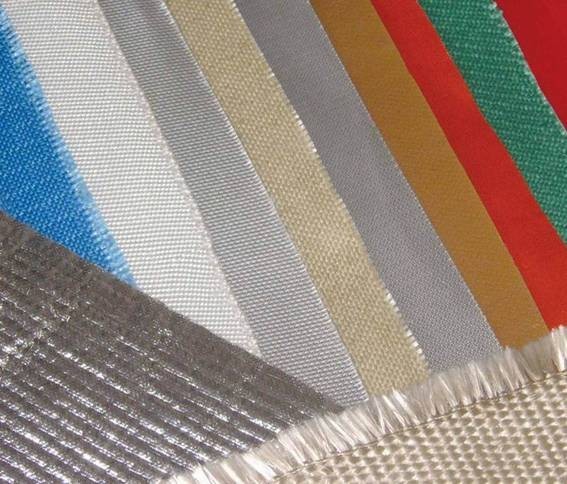

Various fiberglass coatings

In order to enhance the performance and ease of fabrication,fiberglass fabrics can be treated in various ways. With different temperature resistance and special properties, they are applied in a wide range of industrial fields.


Various Coatings:

Fiberglass fabrics
Finishing style

Temperature

Resistance

Fabrics Features

Applications

Heat cleaning

550℃

reduce smoke generation,airborne fibers,good cutting resistance

welding blankets,
general purpose insulation

Silicone rubber coating

550℃

high thermal and mechanical load, resistant to chemical

Welding blankets, compensators, insulation mats,heat production quilts

Neoprene coating

550℃

good resistance to abrasion,allergen resistant

welding protection

Polyurethane (PU) coating

550℃

good resistance to abrasion,allergen resistant

fire protection

Acrylic coating

550℃

good resistance to abrasion and cuts. allergen resistant and anti-adhesive surface

welding protection

PTFE coated fiberglass fabric

550℃

good resistance to abrasion and cuts. allergen resistant and anti-adhesive surface

fire and welding protection

Aluminum laminated

550℃

High temperature resistance

heat insulation

Vermiculite coating

815℃

increase resistance to abrasion and  flame

welding blankets,
general purpose insulation

Graphite coating

750℃

increase resistance to abrasion and  flame

welding blankets,
general purpose insulation

Dying and coloring

550℃

heat protection

heat protection,
welding blankets

Steel wire reinforcing

550℃

increase tensile strength

heavy duty insulation

P.S: High temperature resistance of fiberglass fabric is550℃,while mucilage is300℃.
