Material: Basalt
Refractoriness: 800 Degree C
Diameter: 7-13um
Surface Treatment: Glazed Tiles
Usage: Woven Cloth
Color: Gold, Brown

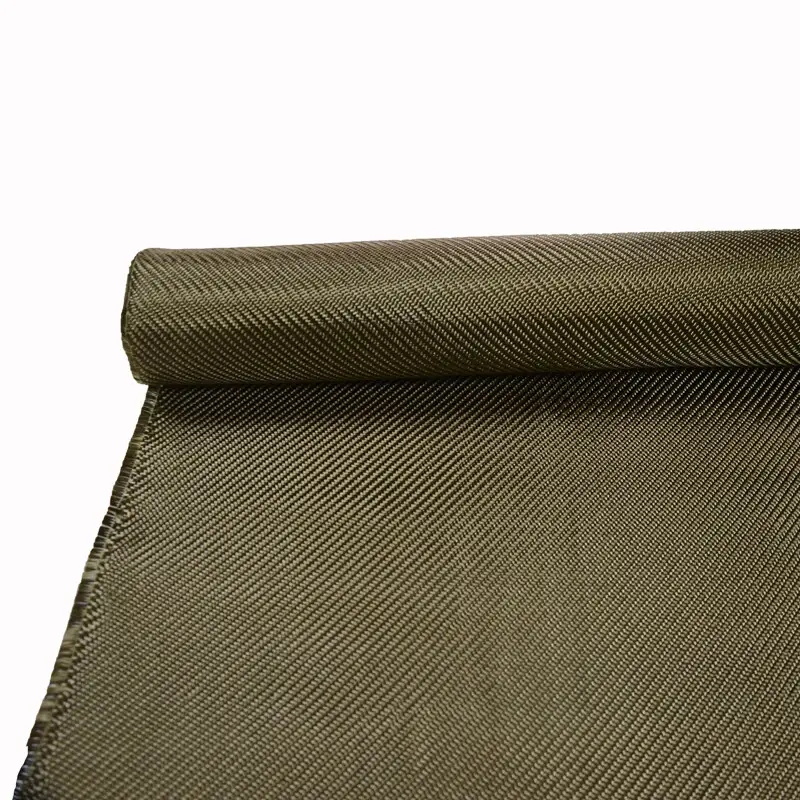

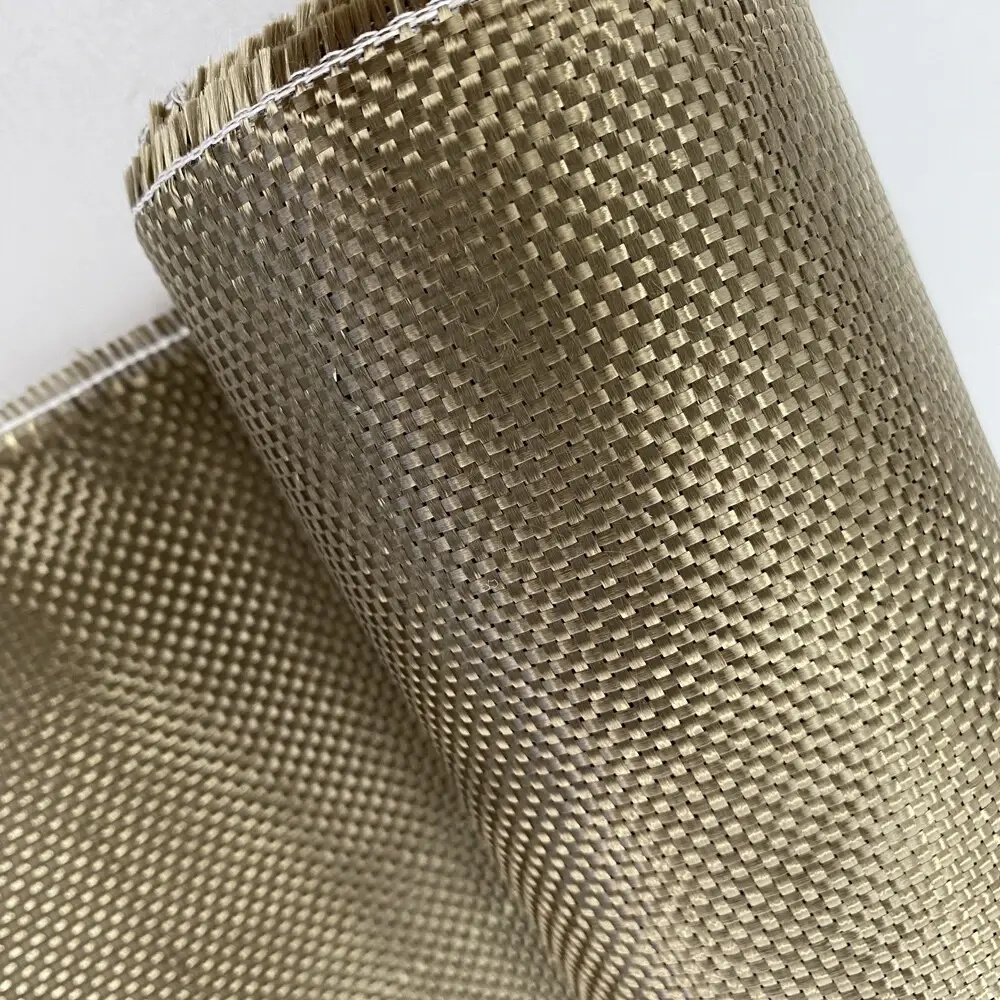

Basalt twill fabric is woven of basalt yarn in twill and satin weaving way.
Area weight: 100g/m2 ~ 800g/m2
Temp. tolerance: 800℃
Width: 1m~2m
Properties |
Basalt fiber |
E glass fiber |
S glass fiber |
Carbon fiber |
Aramid fiber |
Density (g/m2) |
2.65 |
2.54-2.57 |
2.54 |
1.78 |
1.45 |
Tensile strength (Mpa) |
4100-4840 |
3100-3800 |
4020-4650 |
3500-6000 |
2900-3400 |
Elastic modulus (Gpa) |
93.1-110 |
72.5-75.5 |
83-86 |
230-600 |
70-140 |
Elongation at break (%) |
3.1 |
4.7 |
5.3 |
1.5-2.0 |
2.8-3.6 |
Application temperature (℃) |
650 |
380 |
300 |
500 |
250 |
