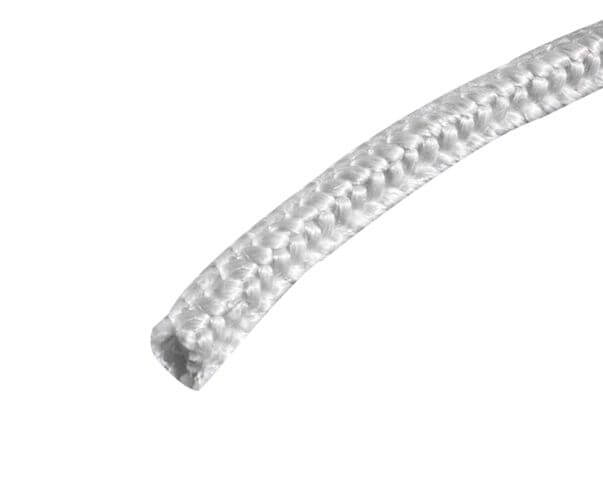

Glass Fiber Packing

Glass fiber is standout among the different organic and inorganic fibers as ideal replacement of asbestos. The packings are made from E-glass fiber, it has excellent capabilities of high strength and high temperature resistance.

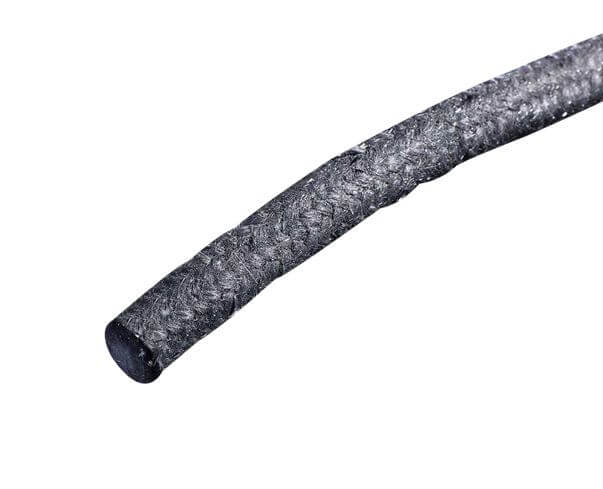

Glass Fiber Packing with Graphite Impregnation

The packing square braided from E-glass impregnated with graphite. Good frictional factor.

Glass Fiber Packing with Graphite Impregnation

Description
Glass Fiber Packing with Graphite Impregnation reinforced with SS Wire


Typical Application
>Universal packing, for rotary, reciprocating pumps, in ship building and domestic fresh water pumps.
>Suited for chemical neutral and resistant to water, steam, hot air, oils, etc.


Prime Features
>Low maintenance, easy to control
>Excellent capabilities of high strength and high temperature resistance
>Economical packing


Technical Data

Material

E-glass fiber and graphite

Temperature Range

-100 up to +600 oC atmosphere;

Process

Rotating

20 bar

Reciprocating

40 bar

Static

80 bar

Shaft Speed

20m/s in rotary

PH

5~9

Density

0.75~1.25 g/cm3
