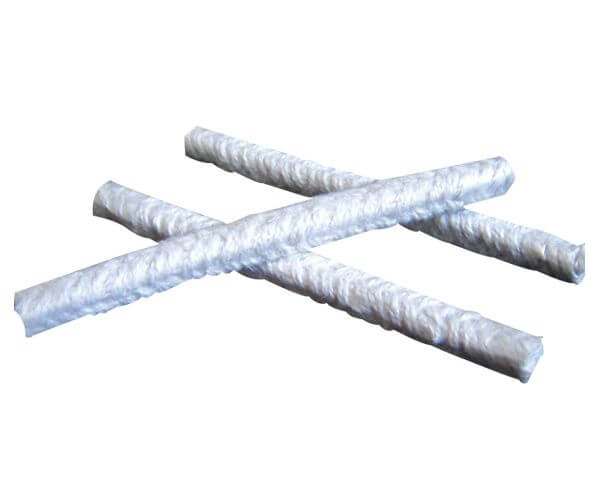

Ceramic fiber Packing

Ceramic fiber is standout among the different organic and inorganic fibers as ideal replacement of asbestos. The packings are made from high quality ceramic fiber, it has excellent capabilities of high strength and high temperature resistance.


Description
Ceramic Fiber packing with PTFE impregnation Made from long ceramic fiber yarn impregnated with PTFE and additives. Has low coefficient of friction and resilient and flexible.
Ceramic Fiber Packing reinforced with SS Wire
Ceramic Fiber Packing with Silicone Rubber Core


Typical Application
> Universal packing, for rotary, reciprocating pumps, in ship building and domestic fresh water pumps.
>Suited for chemical neutral and resistant to water, steam, hot air, oils, etc.


Prime Features
>Low maintenance, easy to control.
>Excellent capabilities of high strength and high temperature resistance
>Economical packing


Technical Data

Material

Ceramic Fiber

Temperature Range

-100 up to +850 oC atmosphere;

Process

Rotating

10 bar

Reciprocating

15 bar

Static

50 bar

Shaft Speed

10m/s in rotary

PH

5~9

Density

0.75~1.25 g/cm3

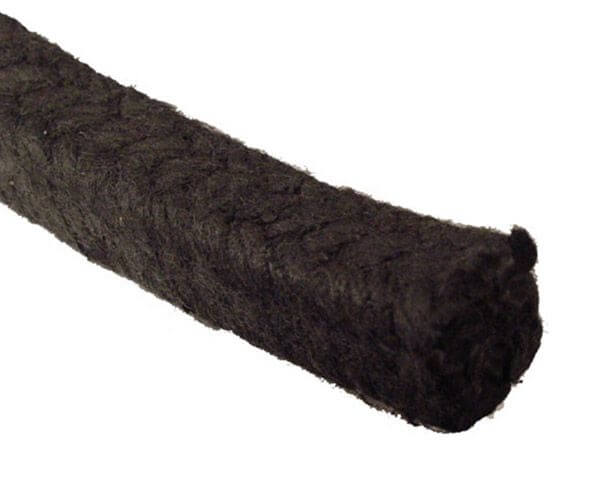

Ceramic fiber packing with graphite impregnation

Ceramic fiber packing with graphite impregnation braided from high quality ceramic fiber impregnated with graphite. Normal for valves and static seal under supper high temperature.
