White PTFE Packing without Oil, PTFE Packing with Oil, PTFE Filament Packing, etc.

Expanded PTFE Round Cord


Valve-spindle cord made of pure expanded PTFE, used as valve-spindle and flange seals in the chemical, pharmaceutical and food processing industries. Flanges are sealed quickly and securely by simple insertion of a ring of PTFE round cord (Ends twisted)


Description
Acids, alkalis, solvents, gases,etc.
Especially suitable for sealing flange connections, pip systems, hydraulic and pneumatic systems, etc. In addition, it's a good ideal for seals in glass, enamel and plastic flanges, vessels and special shaped sealing surface.


Prime Features
>Clean, non-contaminating and graphite free
>Long maintenance free service life
>Minimal shaft wear and leakage
>Save money and time.

Technical Data

Material

100% Expanded PTFE

Temperature Range

-150 up to +260

Process

100bar

Shaft Speed

10m/s

PH

0~14

Density

0.70~0.80 g/cm3


PTFE Filament Packing

Pure PTFE Packing

Pure PTFE Packing with Oil

PTFE Filament Packing


Braided from sintered and high stretched PTFE multifilament yarns. Within PTFE impregnation. Good resistance to compression and extrusion, high structural and cross-sectional density.


Description
PTFE Filament Packing made from synthetic composite PTFE yarn, the yarn is sintered, highly stretched. The packing is then re-impregnated with mix of PTFE emulsion during braiding operation. Good resistance to compression and to extrusion, high structural and cross-sectional density.
PTFE Filament packing with Silicone Core
High red elastic silicone rubber core can absorb vibration to control leakage.


Typical Application
>Universal packing suitable for valves, pumps and agitators in most mediums
>Especially suited for high pressure valves, plunger pumps, agitators, mixer etc. And where contamination is not permitted.


Prime Features
>Clean, non-contaminating and graphite free
>Long maintenance free service life
> Minimal shaft wear and leakage
> Superior performance
> Lower frictional factor

Technical Data

Material

100% Filament PTFE yarn (with Silicone oil, Silicone core)

Temperature Range

-150 up to +260

Process

Rotating

20 bar

Reciprocating

150 bar

Static

250 bar

Shaft Speed

10m/s

PH

0~14

Density

1.75g/cm3

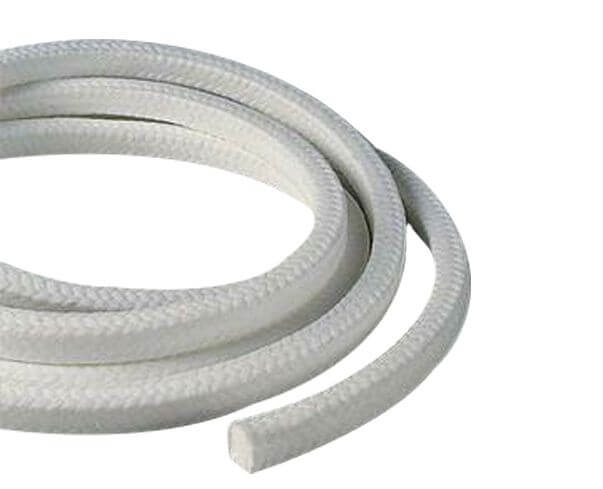

Pure PTFE Packing

Braided from pure PTFE yarn without any lubrication. It is non-contaminating packing.


Description
Pure PTFE Packing is braided of Pure PTFE yarn without any lubrication. Designed for valves and lower shaft speed application under medial pressure in food processing, pharmaceuticals, paper mills, fiber plants where high purity and corrosion resistance is required.
Typical Application


>Rotary and reciprocating plant in the food processing, pharmaceutical, special chemicals, and pulp and paper sectors.
>It is particularly recommended for sugar and chocolate processing, and fine paper production.


Prime Features
>Clean, non-contaminating and graphite free
> Long maintenance free service life
>Minimal shaft wear and leakage
>Superior performance


Technical Data

Material

100% Pure PTFE yarn

Temperature Range

-150 up to +260

Process

Rotating

15 bar

Reciprocating

100 bar

Static

150 bar

Shaft Speed

2m/s

PH

0~14

Density

1.3g/cm3


Pure PTFE Packing with Oil

Braided from the PTFE yarn which with special lubrication, designed for dynamic.

Description
Pure PTFE Packing with Oil braided from pure PTFE yarn which impregnated with silicone oil. It is designed for dynamic condition. The oil can reduce the frictional factor.


Typical Application

>Universal packing suitable for valves, pumps and agitators in most mediums
Prime Features
>Clean, non-contaminating and graphite free
>Long maintenance free service life
>Minimal shaft wear and leakage
>Superior performance
>Lower frictional factor


Technical Data

Material

100% Pure PTFE yarn with Silicone oil

Temperature Range

-150 up to +260

Process

Rotating

15 bar

Reciprocating

100 bar

Static

200 bar

Shaft Speed

10m/s

PH

0~14

Density

1.6g/cm3
