High-temperature High-pressure Valves Special Graphite Packing

Description

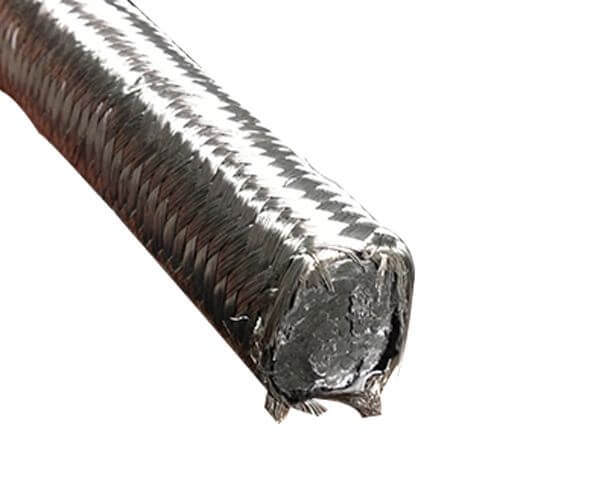

This style graphite packing is braided from graphite yarn with metal alloy wire and glass fiber casing like shell outside.
All-metal coated structures greatly increased the erosion resistant of packing, make packing more compact, more robust, long life.
It is competent to ultra-high temperature, high pressure conditions of the steam valve sealing.

Applicable
>Electric power plant combustion furnace door;
>Chemical plant high-pressure valve sealing;
>Not suitable for highly oxidizing agents.

Jacketed woven materials
>SS304, SS316, Inconel, etc.

Technical Data

Material

External Woven Wire Mesh Cloth Graphite Stuffing

Temperature Range

-200 up to +650 oC
-200 up to +950 oC in steam

Process

60 Mpa in valves

PH

3 ~ 13

Density

Appr. 1.80 ~ 2.0g/cm3



Package

5kgs/roll, 10kgs/roll.

Or, following your request.
