No black ashes in high temperature application

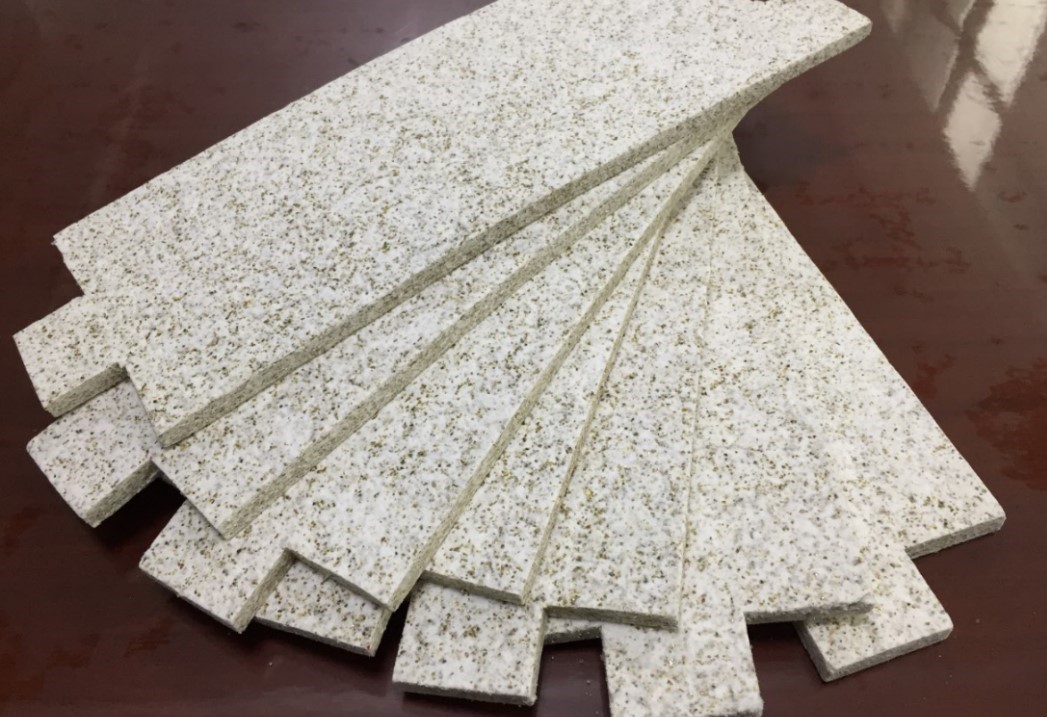

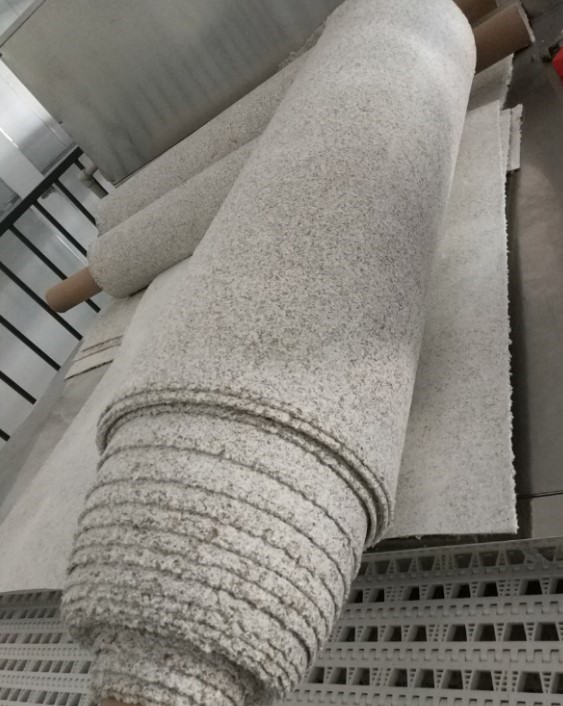

Kingwell Vermiculite Expandable Ceramic Fiber Paper is produced from a mixture of high purity ceramic fiber,fine golden Vermiculite Powders, and organic binders through wet forming process.
This feature serves as excellent material for gasket and sealing applications.
The expandable ceramic fiber paper is noted for its excellent flexibility, outstanding handling characteristics, and high-insulating value.
Typical Applications:
Intumescent mounting mats for automobile catalytic converter system
Aluminum Filtration CFF( Ceramic Foam Filter )edge sealing
Refractory back-up for aluminium melting and holding furnaces
Aluminium furnace tap out cone cover and parting agent
High temperature gascketing and sealing
Expansion joint insulation
Fire protection and High temperature filtration
Industrial furnace seals
Item |
Kingwell-VCP |
Fiber % |
40-50 |
Vermiculite % |
40-50 |
Binder % |
4-10 |
Basis Weight |
2600 |
g/m2 |
3280 |
|
3500 |
|
5200 |
Thickness/ mm |
5.8 |
|
7.3 |
|
7.8 |
|
11.6 |
Gap/ mm |
3.1 |
|
3.9 |
|
4.1 |
|
6.1 |
Temperature ℃ |
500-950 |
